Polar Air Silent Air Industrial 10HP 38CFM 1-Phase 80 gal. Vertical Industrial Electric Air Compressor-W/ Pressure Lube Pump / w/ Isolator Pads
Polar Air Silent Air Industrial 10HP 38CFM 1-Phase 80 gal. Vertical Industrial Electric Air Compressor-W/ Pressure Lube Pump / w/ Isolator Pads - Image 2
, , , ,

Polar Air Silent Air Industrial 10HP 38CFM 1-Phase 80 gal. Vertical Industrial Electric Air Compressor-W/ Pressure Lube Pump / w/ Isolator Pads

(6 customer reviews)
Polar Air Compressor
Compare
Availability:

Available on backorder

$4,494.00

Available on backorder

Add to wishlist
Compare

Continuous Run/Dual Control

Dual Control

Dual control allows users to run the unit with automatic start/stop control, or the optional continuous run setting during high duty cycle peak demand periods.

Optional Settings

The optional continuous run setting allows the pump to cool internally and save the electric motor and magnetic switch from excessive frequent starting and stopping of the electric motor.

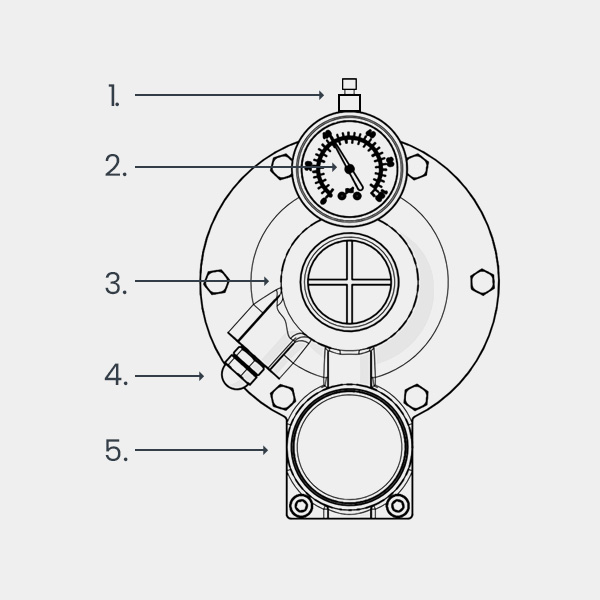

Pressure Lube

Pressure Lubrication is the second type of lubrication systems. This system is more technically advanced and a far more precise method to deliver oil to critical parts of the pump, resulting in longer pump life. The oil is pumped through an oil filter and into the pump where it is then recycled and reused. Since the oil pump is delivering the oil more efficiently the viscosity of the oil is less critical than with a splash system. In the air compressor industry, it is typically more costly to upgrade to pressure lubrication systems. *Our high efficiency manufacturing facility 0to the tank. With this radiator, we target outlet air to the tank within 10 degrees of ambient temperature.


Silent Air

Noise Reduction

Our Patented Silent Air system works by dissipating compressor intake noise through a series of noise cancellation plates, reducing DBA ratings by up to 50%. Silent air compressors operate at a normal conversation level in comparison to traditional compressors that operate at the level of a police siren.

Air Filtration

This low-profile system not only makes the compressor quieter but also adds four levels of air filtration.

Silent Air Technology

  • Significantly lowers the risk of hearing damage
  • Decrease in employee turnover
  • Enhances workplace satisfaction

Belt Drive

Our belt driven compressors are driven by V belts that allow you to adjust the pump speeds by changing pulley sizes.


Piston Compressor Warranty

Eaton Compressor, backs all our piston air compressors with the best extended warranty in the industry. With our extended warranty, we don’t ask you to buy a service plan, we just ask that you purchase and use our oil and filters. This ensures the correct oil and filters are being used, to keep your piston air compressor running for years to come. We have 3 different extended warranty options to choose from so you can pick what best suits your company’s needs. Make sure to research and ask questions, when comparing warranty information. Be certain, when you buy, that you are getting a full warranty. Our trained service and support team is ready to assist you if you ever need them and we carry a full line of air compressor replacement parts.


Motor

These units have name brand OPD (open drip motors) on them, all of which carry a five-year warranty. All of our motors are low RPM (1750 rpm), versus the higher RPM motors (3450 RPM) used on many competitive units. 1750 RPM motors run much cooler than 3450 RPM motors, because of the higher torque factor. They also yield low harmonic distortion, provide much higher torque in cold weather starting and requiring less electricity under start up.

  • Large 1-3/8” output shaft
  • High quality ball bearings on the front and rear of the motor shaft
  • Large starting and running capacitors15 Service Factor load. This means the motor can be pulled 15% over full load for more break horsepower
  • Dynamically balanced armature for low vibration levels
SKU: P01ISXXP10V080VXXXX Categories: , , , , Brand:
Weight 949 lbs
Brands

Polar Air Compressor
HP

10
Tank Size

80
Voltage +/- 10%

230
Phase

1
Drive Type

Electric
Tank Drain

Manual
Pump Type

PRESSURE
CFM

38
Silent Air

Y
Smart Air

N
Compressor Type

Piston
Motor Type

ODP
Tank Orientation

Vertical
Duty Cycle

0.6
Outlet Size

3/4"
Belt Count

2
Pump Stage

2
Pump Model

APP4V1043TP
Pump Riser

N
Belt Tensioner

N
Mag Starter

Y
Radiator

N
Continuous Run

N
Peak Starting Amps

270
CFM At Max PSI

34
Pump RPM

730
Motor RPM

1740
FLA + 1.15 Service Factor

52.9
Locked Rotor Amps

270
Recommended Breaker

60
Max PSI

175
Uncrated Length

39
Uncrated Width

25
Uncrated Height

75
Crated Length

48
Crated Width

46
Crated Height

87
Oil Capacity

2
Oil U/M

Quarts
Start Type

Fixed
Estimated Pump Life (Hours)

70000
Certifications

ETL,ASME,CRN
Service Kit

FKIT008AWBS
